Type lll Medallion Ambulance

Type III Medallion Ambulance

The PL Custom Medallion Type III has for years set the highest standard for emergency vehicles. The finest fit and finish in the industry is combined with plenty of usable payload and the quietest most comfortable ambulance ride available.

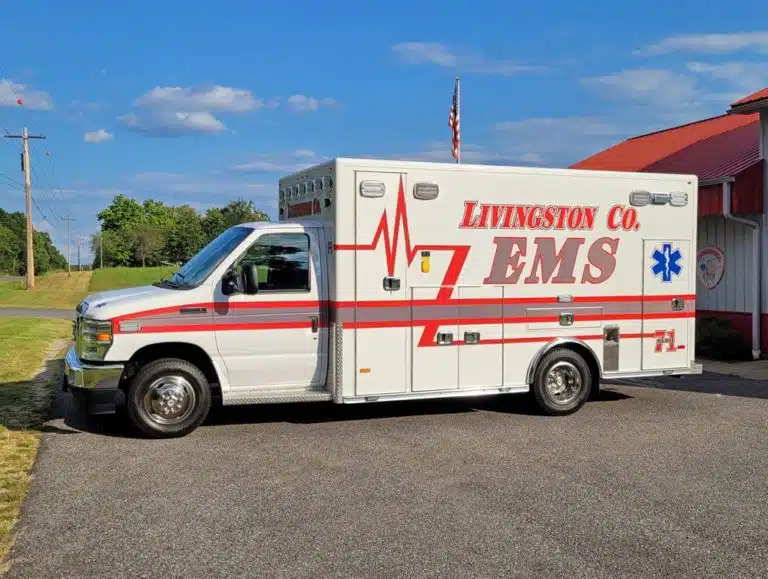

Gallery

Click image for larger view

Body Specs

Extruded aluminum body framework; roll cage structure on 12″ centers

Aluminum body skin .125 5052 H34 single sheet side and roof panels

Upper and Lower 5″ x 2″ Side impact safety rails; body and door framework

Precision metal processing via waterjet technology

3” lowered body skirts; left and right sides with side entrance intermediate step

Five generous aluminum diamond plate exterior compartments with sweep out design.

Fully recessed rear lift up step

Body undercoated with Audio Guard ® for additional sound deadening

33” rear floor height for stretcher loading

Paint system designed for emergency vehicles

Lifetime Structural Integrity Warranty

Type III Cab to body hinged door w/recessed pocket

360 degree swivel attendant seat with 3pt harness

45 degree uppers and radiused cabinet corners; no sharp edges

Recessed “D” bottles head of squad bench

Inside outside access to exterior compartments

Generous aisle width for maximized working environment

Thinsulate Interior insulation for superior thermal and acoustical properties

Squad bench right side; full length or Medic in Mind

Left side CPR seat; single or double wide.

Meganite solid surface countertops

Austin Life Defender sliding, hinged and lift up cabinet doors

Multi-point occupant restraint systems

Lifetime Structural Integrity Warranty

Electrical cabinet easy to access from cab and body for serviceability when needed

Centrally Ducted Climate Control System with 60,000 BTU heat and 38,000 BTU Cooling for superior performance and maximum air distribution

Digital Electronic Thermostat; automatic heat or A/C based on set temperature

Conventional and Multiplexed Electrical Systems

Ergonomically designed control console In cab with map box and cup holders

LED Flashing Lights Body, Grille and Intersection

LED Stop tail/backup and directional lights

LED Ceiling lights (4) rectangular and (6) round dome -12 volt/110volt activated

LED Strip lighting; full height in all exterior compartments.

Automatic Load management and Voltage monitoring systems

PL’s signature courtesy circuits for lighting and other features as requested

Center raceway for access to wiring harnesses.

Lifetime Electrical Warranty

Type lll Medallion 170

170” Body Length

72”/75” Interior Headroom

24” Backboard Compartment 21” deep std

Overall length 22’ 11” (275”)

Download Medallion 170 Chev Drawings

Download Medallion 170 Ford Drawings

Chev G4500

159” WB/100” Ca

V8 Gas Engine

Ambulance Prep Package

GVW 14,200

Ford E450

158” WB/100” Ca

6.8 V8 Gas Engine

Ambulance Prep Package

GVW 14,500

Type lll Medallion 147

147” Body Length

68” interior Headroom

Overall length 21’ 1” (253”)

12” wide Backboard compartment 21” deep std

Download Medallion 80 Chev drawings

Download Medallion 80 Ford drawings

Chev G3500 Chassis

139” WB/80” CA

GVW 12,300

Ford E350 Chassis

138” WB/80” CA

GVW 11,500

PL’s proactive “Medic in Mind” Interior is designed for “full time” safety for the patient and the attendants. This layout supports easy access to everyday equipment from a seated position on either side of the vehicle. Keeping necessary equipment and functions and switches within arm’s reach allows the attendant to remain seated and safely restrained.

Download our PL Custom Classic Sell Sheet

Click Here To Download
